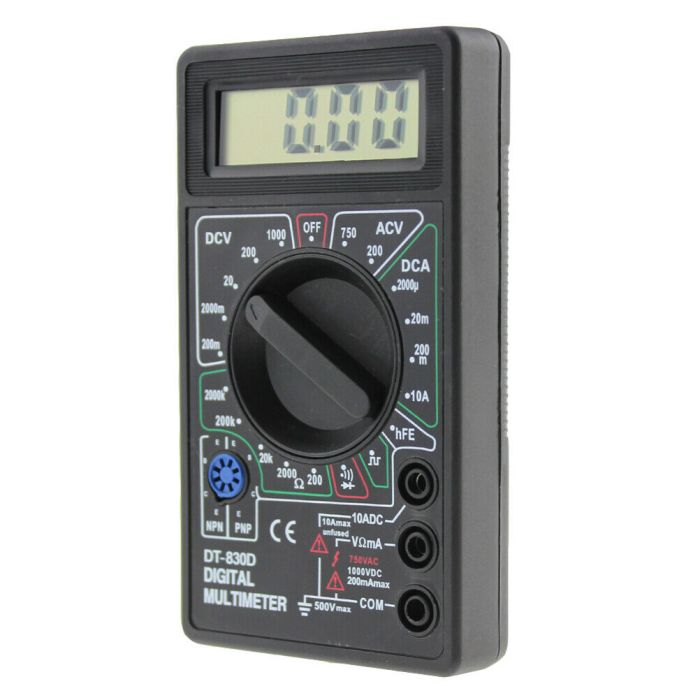

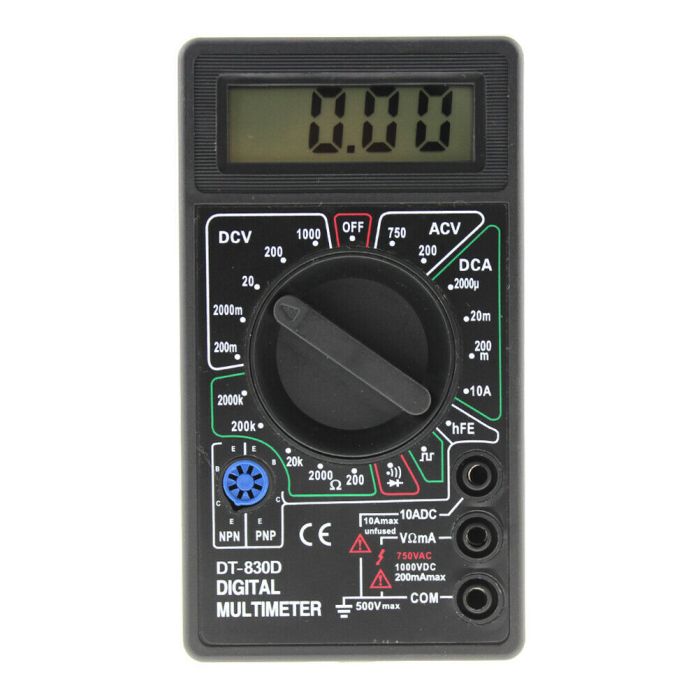

Digital Multimeter
Overload protected with an 8.5cm LCD display, seven functions and nineteen ranges.
In stock
Ready To Ship
SKU:
DT-830D
$17.60
Why Shop With Us?
Showcased Product
Energy Stick
Completely safe to touch and handle, simply complete the circuit by touching both electrodes at the end of the stick simultaneously.
Economical Multimeter, specially recommended for students, hobbyist and beginners.
This digital Mutimeter measures Voltage Amp Current and Resistance. It is polarity & overload protected.
It features a 8.5cm LCD display, seven functions and nineteen ranges.
Ideal tool for checking Electronic Products
What You Get
Digital Multimeter in blister pack. Victor DT830D. Red and Black test leads are included.
Scales include:
DC voltage 200mV to 1kV,
AC voltage 200V-750V,
DC current 200 microamp-10 Amp,
Resistance 200-2meg Ohm and Transistor & diode test.
AC and DC voltage
resistance
DC amps
battery and diode testing
Operation Instructions
1) When testing DC voltage, AC voltage, DC current resistance, diode, buzzer and battery, connect the red test lead to 'vo, mA' jack and black test lead to 'COM' jack.
2) When testing the current more than 200m A, connect the red test lead to '10ADC' jack and black test lead to 'COM' jack.
3) When testing the magnifying ratio of the transistor, tum the switch to hFE position and connect the transistor to the eight-hole jack.
4) Sqaure wave output: the frequency is 50Hz, the voltage is approx 3Vp-p The output jack is 'V,0, mA' and 'COM
